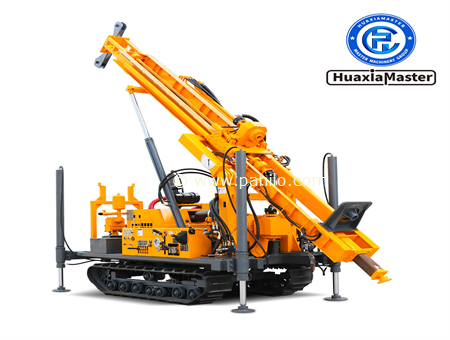

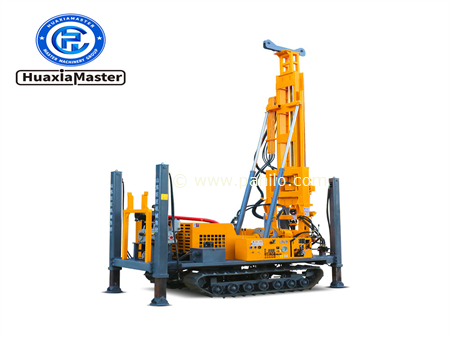

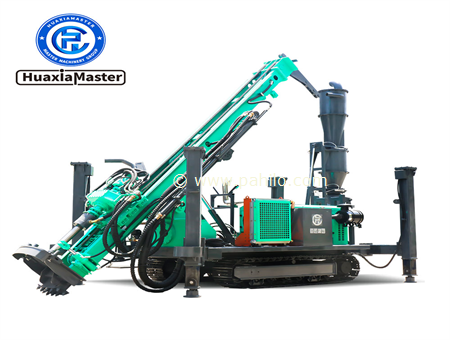

1?Introduction of JDL Series Mechanical Top Drive Core Drilling Rig
JDL series drilling rig is a mechanical top-drive water well drilling equipment which integrates mud drilling with air drilling. It solves the problems of difficult drilling by air DTH hammer in soil layer air drilling and low drilling efficiency in hard rock, gravel and pebble layer mud drilling. Mechanical top-drive drilling rig can adapt to various strata, and drilling efficiency is efficient and energy-saving.
2?Features of JDL Series Mechanical Top Drive Core Drilling Rig
2.1 The function integration of mud drilling and air drilling is realized.
2.2 Some functional interfaces are reserved in the hydraulic control system of drilling rig, which can be extended according to the technological requirements of different users.
2.3 The main spindle of the drilling rig adopts mechanical transmission, the transmission efficiency is doubled, and the power consumption is greatly reduced.
2.4 The drilling rig adopts mechanical top-drive power head and long stroke double speed mechanism to improve drilling efficiency and reduce drilling blockage and burning accidents.
2.5 The drilling rig adopts mechanical winch, which has fast lifting speed and is easy to handle
3?JDL Series Mechanical Top Drive Core Drilling Rig Parameters
|
Model |
JDL-280 |
JDL-350 |
JDL-5 |
|
|
Working strata |
Loose soil and bedrock (hardness F6~20) |
Loose soil and bedrock (hardness F6~20) |
Loose soil and bedrock (hardness F6~20) |
|
|
Drilling method |
Top drive mechanical rotary hydraulic propulsion,Mud drilling or pneumatic down-the-hole hammer drilling |
Top drive mechanical rotary hydraulic propulsion,Mud drilling or pneumatic down-the-hole hammer drilling |
Top drive mechanical rotary hydraulic propulsion,Mud drilling or pneumatic down-the-hole hammer drilling |
|
|
Drilling capacity |
Drilling diameter |
75-350mm |
75-350mm |
75-350mm |
|
Mud drilling |
450m |
530m |
1000m |
|
|
Pneumatic Drilling |
280m |
350m |
800m |
|
|
NQ Rope Drilling |
500m |
600m |
1200m |
|
|
Power |
Diesel model |
YN27 |
YN33 |
YN48GBZ |
|
Rated power |
42kW |
58kW |
92kW |
|
|
Rated speed |
2400r/min |
2400r/min |
2400r/min |
|
|
Power head |
Rotation speed |
33~1120r/min |
27~901r/min |
43-1080r/min |
|
Torque |
0-9800N.m |
0-10500N.m |
0-16500N.m |
|
|
Journey |
2300mm |
3500mm |
3500mm |
|
|
Feeding system |
Lifting power |
100kN |
120kN |
240kN |
|
Propulsion |
50kN |
85kN |
180kN |
|
|
Winch |
Mechanical winch (single rope) |
4.5T |
5.5T |
7.5T |
|
Drill pipe |
Drill pipe diameter |
Φ50/Φ60/Φ76/Φ89 |
Φ50/Φ60/Φ76/Φ89 |
Φ50/Φ60/Φ76/Φ89/Φ102 |
|
Drill pipe length |
2000mm |
3000mm |
3000mm |
|
|
Crawler chassis |
Walking speed |
2km/h |
2km/h |
2km/h |
|
Climbing ability |
25°~30° |
25°~30° |
25°~30° |
|
|
Dimension |
Shipping status |
4600*1900*2540mm |
6300*2000*2600mm |
6300*2000*2650mm |
|
Working status |
3800*2200*5700mm |
3800*2400*7600mm |
3800*2500*8500mm |
|
|
Weight |
3500kg |
6500kg |
11500kg |
|
|
Air compressor |
Total gas consumption |
16~35m³/min |
16~35m³/min |
16~35m³/min |
|
Working pressure |
10.5~24.6bar |
10.5~24.6bar |
10.5~24.6bar |
|
Note: Products are constantly being improved. Any changes will not be notified separately. Please refer to the actual product.
